H.VIEW 16 Channels 4K 8MP PoE Security Camera System, Smart Dual Illumination, Two-Way Audio, Person Detection, HVK16-800S2-8MP

Original price $1,199.99
Original price $1,199.99 - Original price $2,099.99
Original price $1,199.99
Current price $999.99
$999.99 - $1,899.99
Current price $999.99
Cameras: 8 Cameras+16CH NVR
HDD: NO HDD
  • Description
  • Specs
  • Downloads

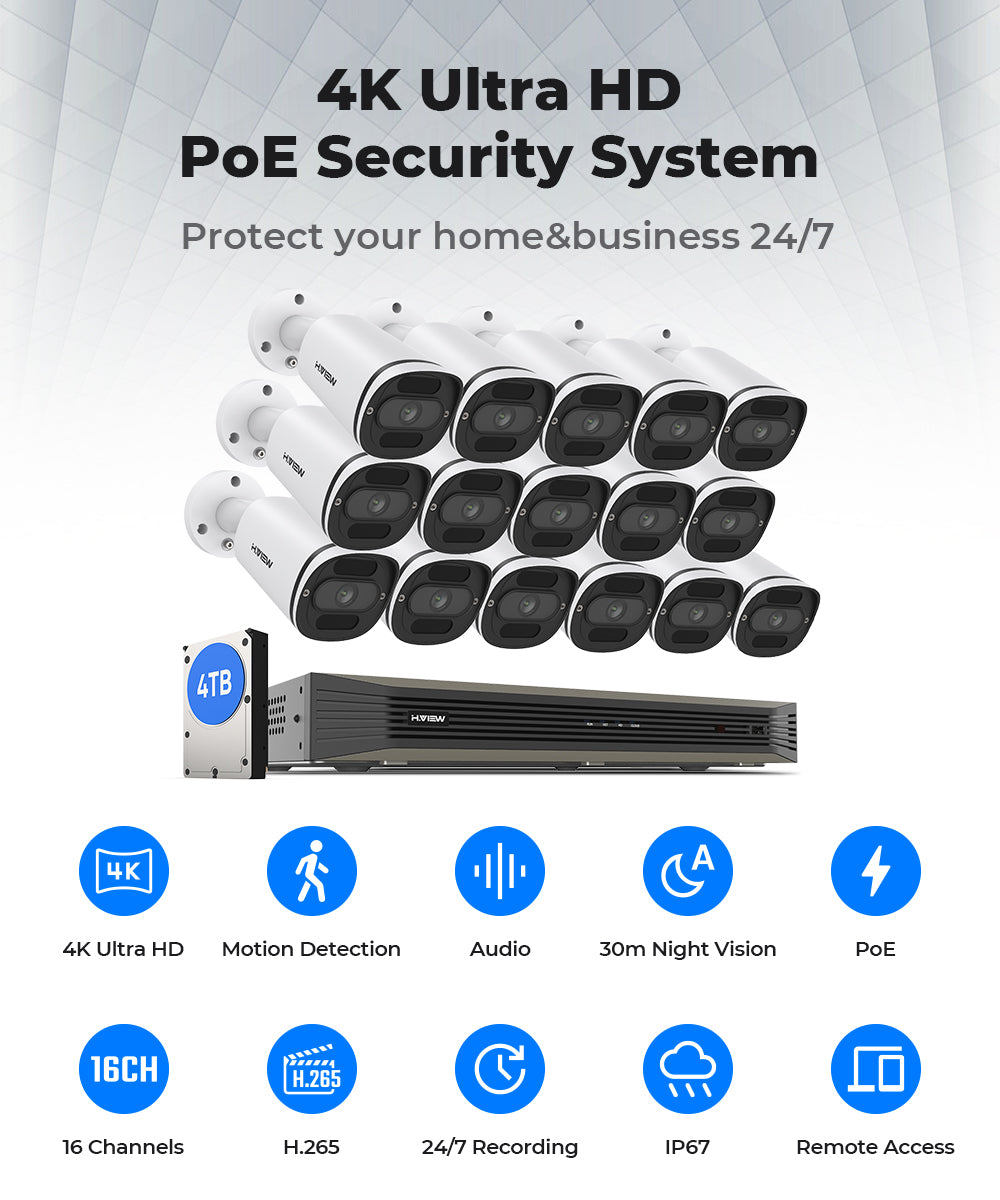

  • 4K UItra HD, Upscaled Your Home Security

    8MP High Resolution (3840×2160), Much Clearer than 1080p, Provide incredibly bright and sharp images in real color.

    Effective Light Warning for the Unwelcome

    Once an intruder is detected, the camera's spotlight warning are triggered to alert potential criminals. And push alerts to your mobile device and email.

    Smart Dual Illumination

    The Camera has Dual Illumination Modes of Infrared and white light

    Customizable Motion Detection Events

    You can create a variety of motion detection settings for the camera, including Person detection, line crossing detection, intrusion detection and area-specific detection.

    Avoid 99.5% False Alarm

    AI Person Detection is Different from traditional PIR or motion detection. Built-in updated sensor will only detect human movement, won't be triggered by leaves, animals or insects.

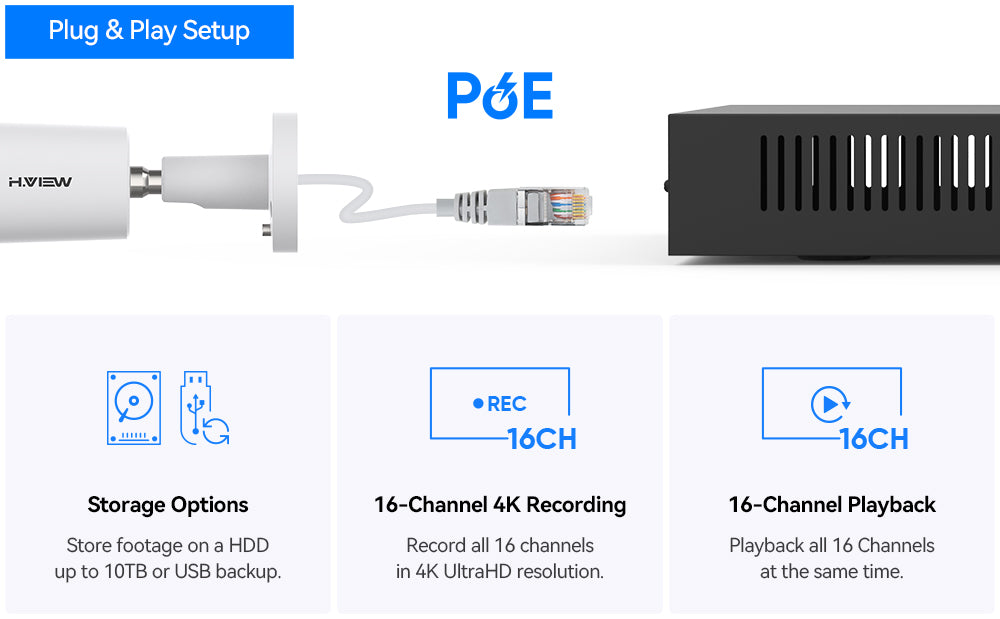

    Easy Plug-and-Play Connection

    With a Plug-and-Play reliable connection, this PoE camera uses a single Ethernet cable to transmit both data and power.

    Real-Time Two-Way Audio Communication

    Camera has Built In Microphone And Speaker, Never Miss a Moment With Your Family.

    More video, Less storage

    H.VIEW H.265 compression reduces storage and bandwidth by up to 50% over traditional H.264 compression.

    24/7 Monitoring and Recording, NVR Never Sleeps

    This 8CH PoE NVR security camera system supports simultaneous live feed and 24/7 recording for all cameras. When something abnormal is detected, you'll get notified instantly. You will never miss anything.

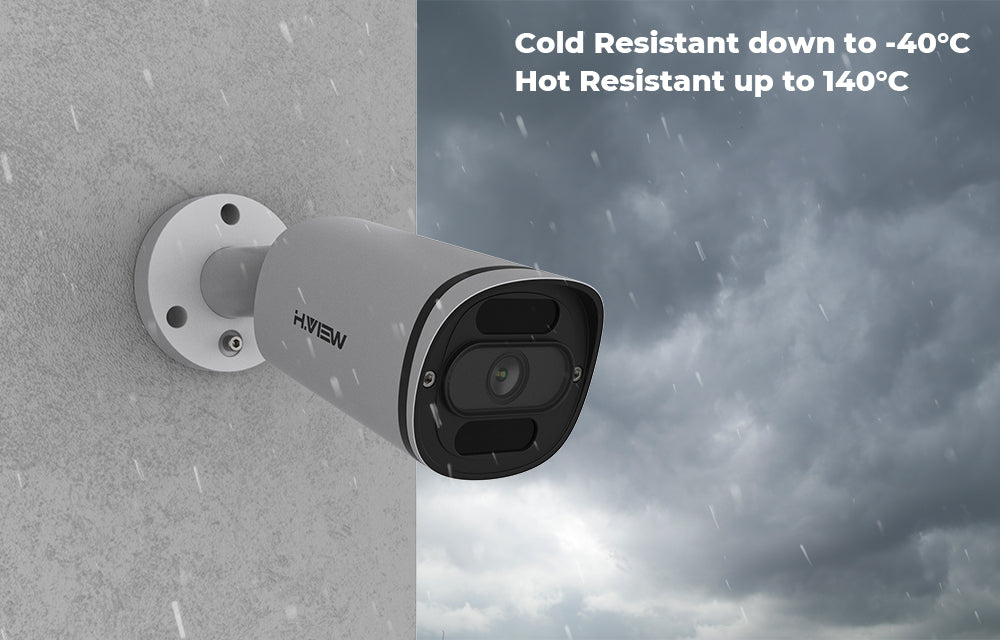

    Ready for Anywhere, Indoor and Outdoor

    Outdoor and Indoor IP Camera with an IP67 waterproof rating. It can stand harsh weather conditions, including rain, snow, intense cold and heat.

    Remote Access Anytime, Anywhere

    Support multiple online viewing, No matter where you are, you can Through mobile APP remotely access the camera to see.

    Specification



  • NVR Specifications

    Model NVR3216-16P
    Video/Audio Input
    IP Video Input 16-ch
    Network
    Incoming Bandwidth 50Mbps
    Outgoing Bandwidth 40Mbps
    Remote Users 128
    Protocols P2P, UPnP, NTP, DHCP, PPPoE
    Video/Audio Output
    HDMI/VGA Output HDMI:
    1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    VGA:
    1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    Synchronous Playback 16-ch
    Corridor Mode Screen 3/4/5/7/9
    Decoding
    Decoding format Ultra 265/H.265/H.264
    Liveview/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    Capability 1x8MP@30,1 x 6MP@30,1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080p@25, 8 x 960p@25,8 x 720p@30
    Hard Disk
    SATA 1 SATA interface
    Capacity up to 10TB for each disk

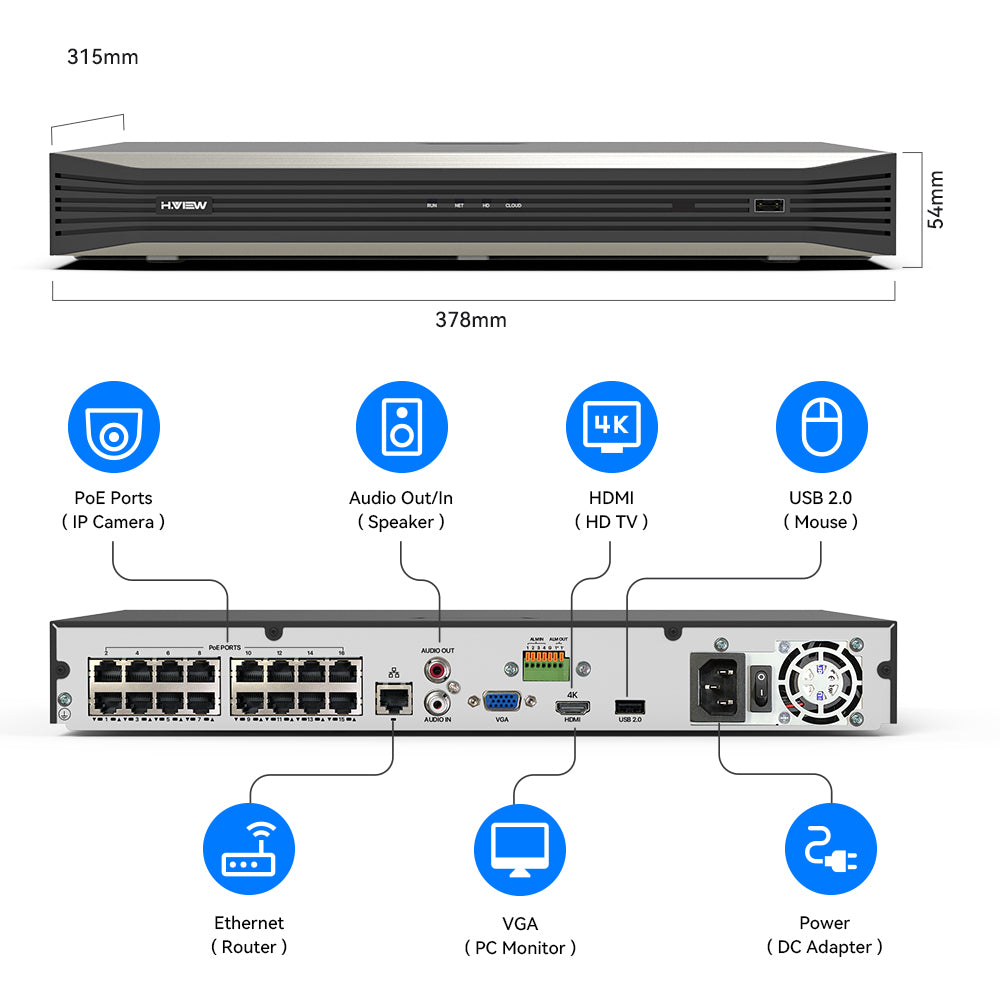

    External Interface
    Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
    USB Interface Rear panel: 2 x USB2.0
    Supported Standard IEEE 802.3at, IEEE 802.3af
    External Interface
    Interface 8 RJ45 10M/100M self-adaptive Ethernet Interface
    Max Power Max 30W for single port
    Max 75W in total
    Supported Standard IEEE 802.3at, IEEE 802.3af
    General
    Power Supply 48V DC
    Power Consumption: ≤9 W (without HDD)
    Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
    Dimensions (W×D×H) 260mm × 240mm × 46mm (10.2"×9.4"×1.8")
    Weight (without HDD) 1.1kg (2.43 lb)

    Camera Specifications

    Model HV-800S2
    Image Sensor 8 Million Pixel, Progressive Scan CMOS
    Smart Features Motion Detection, Intrusion Detection, Human Body Detection
    Lens 2.8mm@F1.4 95° of horizontal coverage;
    Camera Streams Main Stream: up to 8MP (3840×2160): Max. 20 fps,
    Sub Stream: up to 720p (1280x70): Max. 20 fps;
    Mobile Data-Sensitive Stream: up to D1 (720×576): Max. 20 fps
    Max. Image Resolution 3840×2160; 8 Megapixel
    Frame Rate 8MP (3840×2160)/15 fps; 6MP(3042× 2048 )/20fps;  5MP (2048×1520)/20 fps; 4MP(2592*1520)/20fps; 1080P (1920*1080)/20 fps
    Day & Night IR-cut filter with auto switch (ICR)
    Wide Dynamic Range Digital WDR
    Waterproof Rated
    IP67 Rated
    Decoding format H.265/H.264
    Liveview/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p
    Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
    Interoperability ONVIF (Profile S, Profile T)
    Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
    Power Supply 12 V DC±25%, PoE (IEEE802.3 af/at)
    Supported Standard IEEE 802.3at, IEEE 802.3af
    Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
    Dimensions (W×D×H) 183mm × 68mm × 68mm (7.20"×2.67"×2.67")
    Weight  0.55kg (1.2 lb)
