Style: Dome Camera
Connectivity: IP/Network Wireless
Lens (mm): 4.7-94mm
Video Compression Format: H.265
Technology: Infrared
Power Consumption(W): <15W
Supported Mobile Systems: Android,ios
Power Supply: Normal
TF Card: None
Sensor Brand: SONY
Supported Operating Systems: Windows 7,Windows 10,Windows XP,Windows 8,Mac os
Minimum Illumination(Lux): 0.01 Lux
Audio Output: None
Color: WHITE
Pixel: 2MP
Installation: Side
Sensor: CMOS
IR Distance(m): Max 80 Meters
Dimensions (L x W x D)(mm): 239*137*215mm
Storage: None
Type: Speed Dome Camera
Wall Bracket: Ceiling
Network Interface: Wi-Fi/802.11/b/g
is_customized: Yes
Power Supply(V): DC 12V 2A
Alarm Action: FTP Photo,Email Photo
High Definition: 1080P(Full-HD)
Special Features: PTZ
Processor & Sensor: HI358EV200+1/2.8" SONY 307
P2P: By APP CamHi
Website Interrface: By IE,Chrome,Firefox,Safari and so on
Lens: 4.7-94mm 30X Optical Zoom Lens
View angle: 68.5-4.2 degree
ONVIF: Support Onvif 2.0
Motion Detect & Email Alert/FTP: Support
Night Vision: Up to 80M/328ft, built in 6Pcs Array LEDs+ 2pcs light
Pan: horizontal: 355 degree
Tilt: Vertical: 90 degree
Zoom: Support 30X Optical Zoom
Waterproof: IP66
TF card Slot: up to 128GB
Material: High Quality Metal Shell
Operating temperature: -20 to +60 degree
Operating humidity: 10% to 95%
Features:
1. Built-in high-fidelity Mic and Speaker, support Two-way Audio
2. Support 30X Optical Zoom Lens
2. Motion Detection & Alarm/Recording
3. Support Wireless(Wifi) and Wired(LAN Cable) two Mode
4. Built-in 6pcs Array LEDs + 2pcs White Supplement Light, Max to 80m IR Night Vision Distance/35m Full Color Vision
5. Support Remotely View via the App CamHi on Mobile
6. Support Continuous Recording (depend on your storage)
7. Support ONVIF 2.0
8. Pan 355 degree/ Tilt 90 degree
9. Support TF Card Max 128 GB
Parameters:
Resolution & Model Number: 1920*1080 BES-HX-HD20M820AS
Processor & Sensor: HI358EV200 + 1/2.8" SONY 307 @20fps
IR Night Vision parameters: IR Cut Minimal illumination: 0.1Lux(Day), 0.01LUX(Night)
IR LED: 6 Pcs Array IR LED + 2 Pcs White Supplement Light
IR Distance: MAX 80 meters
Wireless Protocols: Support 2.4GB(802.11b/g/n)150Mbps, No support 5GB Wifi. (Wifi Mode)
Network Interface: RJ45 10/100MB Ethernet interface. (Wired Mode)
Video Compression: H.265
Connector: 1 PCS LAN Port + 1 PCS Power Connect + 1 PCS Reset Button + 1 Pcs Audio Out Port
Lens: 4.7-94mm 30X Optical Zoom Lens
Material: High-Quality Metal Shell
SD Card Slot: up to 128GB supports
Power Supply: 12V 2A (Included. )
Package Contents:
1 * 1080P PTZ Camera
1 * User Manual
1 * 1M LAN Cable
1 * Waterproof Lid & Screw Set
1 * Loud Speaker
Note: SD Card Optional. If you choose a bundle with 64G Card, the card will be PRE-installed inside.
Camera Just supports Audio function, NOT support Two-way audio.
Full HD 1080P with 30X Optical Zoom Lens
1080p High Definition Shows Every Little Detail and Is Provided With Enhanced Digital Noise Reduction
Full Color Night Vision
Built-in 6Pcs Array LEDs + 2pcs White Supplement Light to ensure nighttime viewing distance of up to 80 meters
30X Optical Zoom Lens
30X Optical Zoom lens with auto-focus function enables a wide viewing angle (36°~100°).
It lets you zoom in to see more details of far-away objects without getting closer, or zoom out to get a wider and larger view.
Pan Tilt Rotation
Horizon: 0 To 355 Degree ; Vertical: 0 To 90 Degree
Peace of mind when you're away
The intelligent camera starts recording when it detects motion,
and sends a notification to your phone/mailbox.
Multi-platform Remote Viewing
You can remote view the real-time image on CamHi App wherever you are.
support to view from different devices like Phone/iPad/Tablet/PC etc.
IP66 Waterproof
Seal design ensure camera can work in harsh environments
Metal shell for weatherproof.

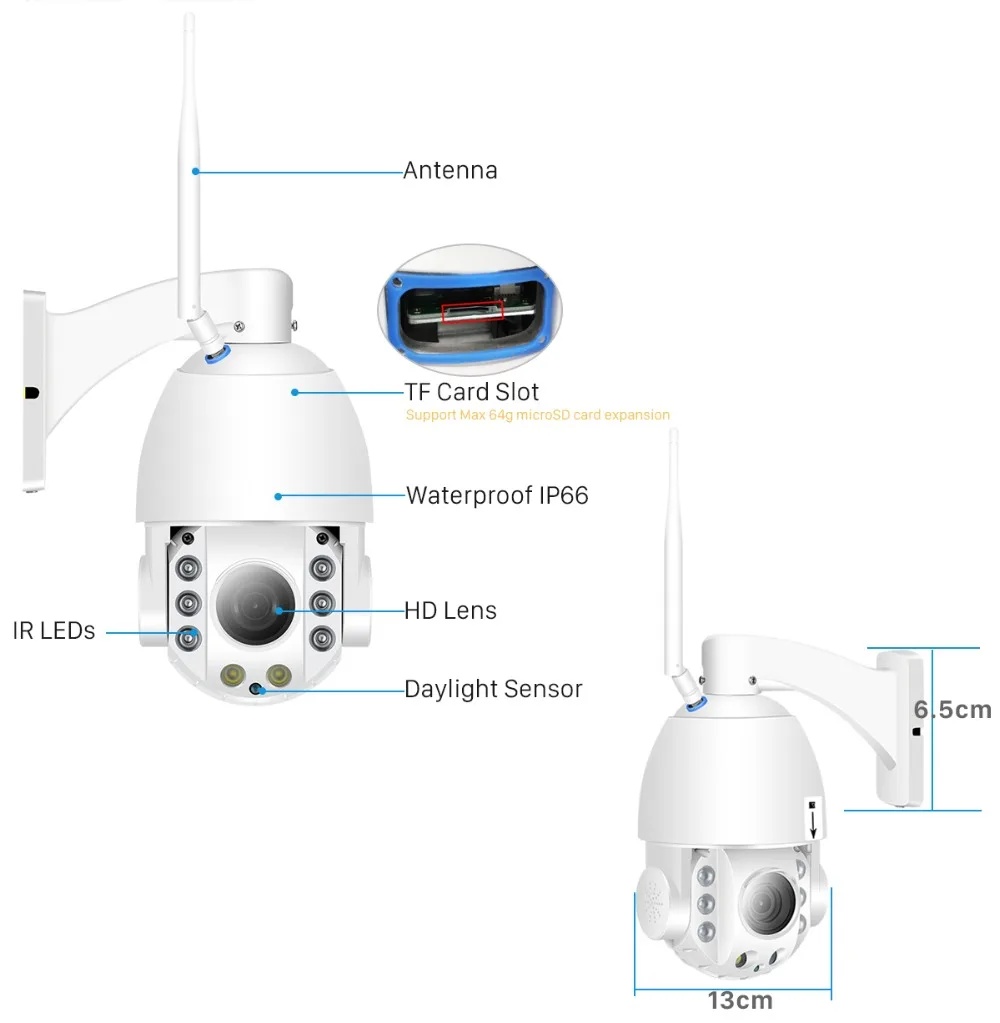

Product Appearance
What's in Box
Installation Guide
1. Download the CamHi App at Google Store or App Store
2. Search Camera from LAN( Make sure the camera is connected to the router and power ）
3. Connecting succeed
( We recommend using a network cable to connect the camera instead of using wireless to make it more stable. )
|
|
