7 inch Video Doorbell Monitor Intercom With 1200TVL Outdoor Camera IP65 Door Phone Intercom System

£99.99
  • Barcode:
706-201_01

7” Wired Video Door Phone System, Visitor Can Use Call Panel Calls, Then You Use Indoor Monitor Unlocking, Monitoring, Taking Pictures And Recording Video.

706-203_03


Multi-languages OSD Menu

The System Supports Six Different  Languages: English, Russian, French, Arabic, Spanish, Japanese.706-203_05


Clock & Date Mode

With This New Function, You Can Consider The Indoor Monitor as a Clock Hanging On The Wall. -401_04

Touch Sensor Button,Acrylic Wire Drawing Panel

Indoor Monitor Is Made Of Acrylic Wire Drawing Panel And TFT Display ,Very Elegant Design ,It Adopts Advanced Touch Technology .With Sensitive Blue And Red Light.706-203_07


1200TVL Resolution
 Camera, View More Clearly.

1200TVL High Resolution HD CMOS, See Sharper And More Details Than 800TVL/600TVL.706-201_09



Support Electronic Lock, Analog Camera, PIR (All Not Included, if you need, contact us to buy)

Our 7" Video Door Phone Set Supports Connecting With PIR Detector, Analog Camera And Electronic Lock. It Can Protect Your Home And Property In All Aspects.
​Please Notes:
PIR Installation Separately Can Be For Alarm Prompt only, Work With Camera Together Can Alarm And Video Recording.706-201_11




Dual-way Intercom, Call Transfer Among Monitors

This Item Is Hands-free And Available For Dual-way Communication. It Supports Communication Between Indoor Monitor And Outdoor Camera, But Also Supports Communication Between Monitor And Monitor.706-201_13





Adjust Lock Time, Compatible With All Electronic Lock (Not Included)

Support To Connect a Delay Function Electronic Lock To This System. With This Function, You Just Need To Press The Unlock Button On Monitor. Support Adjusting The Time Between Lock And Unlock. So, It Makes Your Home More Safety.706-201_15






Video or Picture Record, SD Card Supported (Not Included)

When Someone Rings The Doorbell, The Monitor Inserted With SD Card Will Record Picture or Video Automatically. If The SD Card Doesn't Applied, The Monitor Will Just Only Record Picture. The Built-in Memory Could Save 86 Pictures, With SD Card, You Can Set The Recording Mode To Video. When The SD Card Is Fulled, The Earliest Recorded Video Will Be Deleted Automatically.
706-203_17


IP65 Waterproof, Anti-thunderstorm Design

The Outdoor Camera Is Equipped With Rubber Gasket Ring, There Is No Way To Leak. It Also Can Works Well Even In Bad Weather.706-201_19



IR LED Offset Lighting Can Obtain Better Evening Viewing

It Helps You Identify The Visitors Even In The Dark Night.3362096305_2095525094



Fashionable Appearance ♦1200TVL Camera ♦3pcs 940 Nanometer IR LEDs For Night Vision ♦Adjustable Intercom Volume ♦Dual-way Intercom ♦IR Sensor, Turn On/off IR LEDs Automatically ♦Easy To Install And DIY Installation ♦Rust-proof Aluminium Alloy Anti Vandal Panel ♦IP65 Weatherproof 706-201_44
Product Specs-Outdoor
Camera Sensor 1/3" CMOS, 1200TVL-Line High Resolution
Lens  3.7MM HD Pinhole Lens
Night Vision IR Light, 3pcs IR LEDs
Electronic Lock Support
Power Consumption 200mA Max.
Power Supply Supplied From Indoor Monitor
Material Aluminum Alloy panel
Waterproof IP65
Operation Temp -40°C +50°C
Installation Surface Mounted
706-203_49 Excellent Performance ♦7"TFT Display, Acrylic Wire Drawing Panel ♦Touch Button,With Storage ♦Room to Room Intercom ♦Door Answering, Monitoring And Unlocking ♦Adjustable Color, Brightness and volume ♦Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card ♦12 Ringtone For Choice (new firmware with motion detection, but with 6 rongtone)

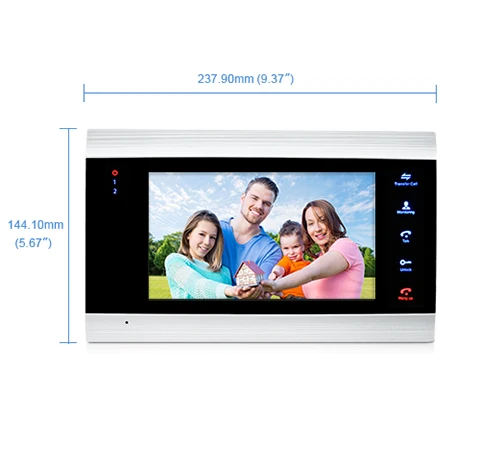

Product Specs-Monitor
Monitor & Resolution 7" TFT LCD, 800*480
Memory Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card
Intercom Code Hands-free Dual-way Communication
Delay Calling Time 120s
Keypad Touch  Button
Power Input & Consumption External Power DC 12V; Standby:3W; Working:5W
Material     Acrylic Wire Drawing Panel
Recording Picture: Jpeg Format; Vide: Avi Format
Support 2 Call Panel +4 Indoor Monitor + 2 Analog Camera & 2 PIR
Operation Temp -10°C +60°C
Installation Surface Mounted



Package706-201_29

1x Indoor Monitor 1x Monitor Mounting Plate 1x Power Adapter 5x 200mm 4 Pin Connerctor 2x Gurantee Card 2x English User Manual 1x Outdoor Call Panel 1x Call Panel Mounting Plate 1x 200mm 2 Pin Connector 2x Screw Bag 2x Qualified Certificate 1x Rain Cover



Please Notes:

The Extension Cable(5m,15m,25m) Is Not Included, You Need To Buy It Separately According To Your Needs.(Input:100V-240V)
706-203_31
  We Will Send Applicative Power Adapter To Your According To Your States



Installation Method

706-201_33
706-201_34



Connection Diagram

706-201_36
PIR Sensor And CCTV Camera Installed To Work Together Can Alarm and Video Recording (Camera with individual power).
